Kubernetes Ingress and Ingress controller: Complete Guide with microservice

Exposing Golang microservice

Alagesan Palani

Sep 07, 2025

What is Ingress?

Ingress is an API object in Kubernetes that manages external access to services inside your cluster.
Normally, Kubernetes services (ClusterIP, NodePort, LoadBalancer) expose pods, but they are limited:
- ClusterIP → accessible only inside the cluster.
- NodePort → exposes service on each node’s IP with a fixed port (not very flexible).
- LoadBalancer → creates a cloud provider load balancer per service (can be costly).

Instead, Ingress provides a smarter way:

It acts like a reverse proxy and defines rules (based on hostnames or paths) for routing external traffic to internal services.
Example:
- myapp.com/api → forwards to api-service
- myapp.com/web → forwards to frontend-service

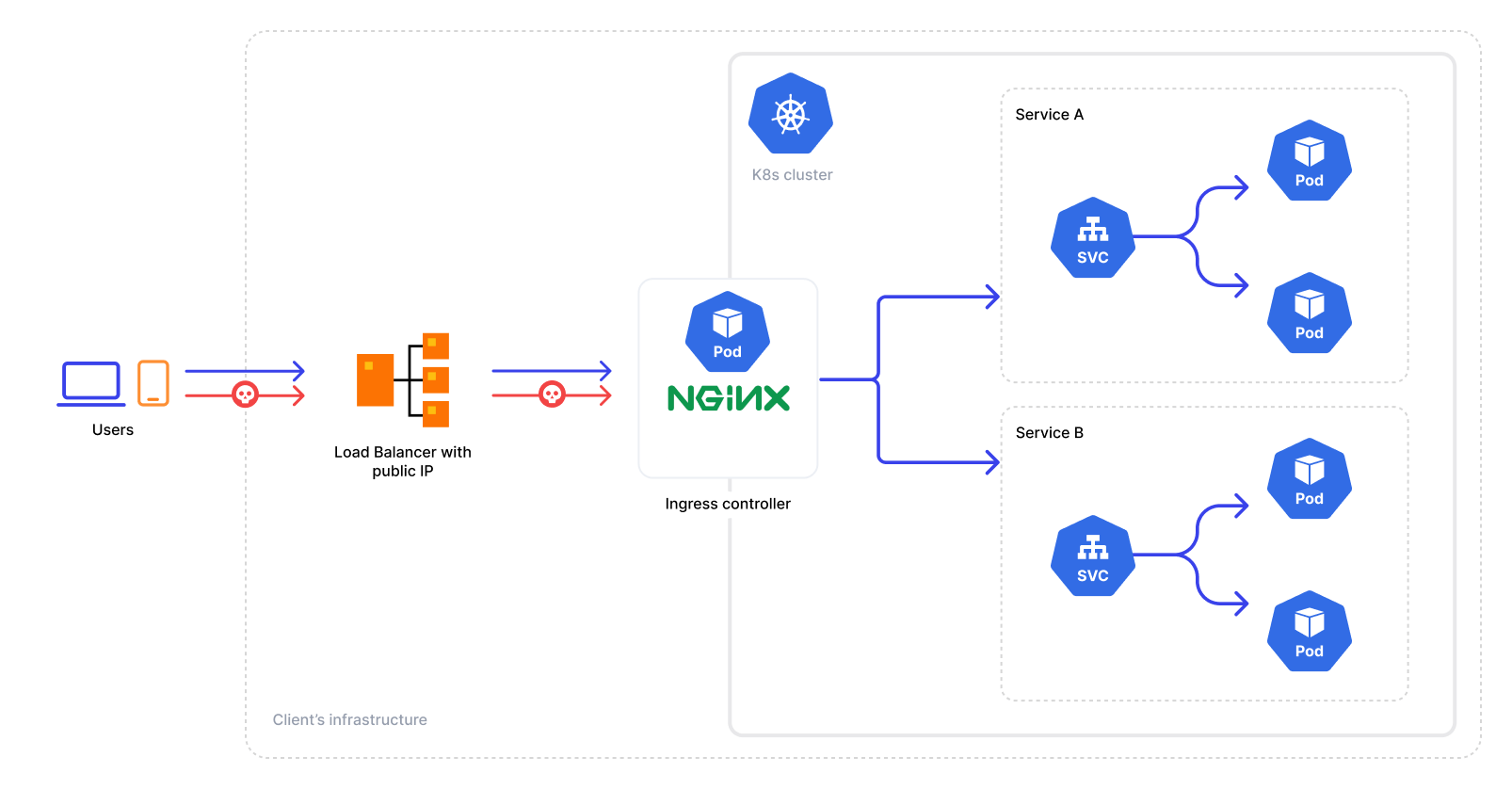

What is an Ingress Controller?

The Ingress object itself is just a set of rules (YAML config).
To actually enforce those rules, you need an Ingress Controller, which is a piece of software running in the cluster.
It watches Ingress resources and configures a reverse proxy (like NGINX, HAProxy, Traefik, etc.) to handle incoming requests accordingly.

👉 Without an Ingress Controller, the Ingress object does nothing.

Why do we need Ingress + Ingress Controller?

To expose multiple services under the same IP/domain using rules.
To avoid creating a separate LoadBalancer per service (cost & complexity).
To handle TLS/SSL termination in one place.
To support advanced features:
- Path-based routing (/api → one service, /app → another)
- Host-based routing (foo.example.com, bar.example.com)
- Load balancing and sticky sessions
- Rate limiting, authentication, etc. (depending on controller).

Installing an Ingress Controller

Lets install first a famous ingress controller, nginx ingress controller - using public helm charts. As installed below, we need to install the ingress controller with the nodeport service type so that we can run in local cluster.

helm repo add nginx-stable https://helm.nginx.com/stable
"nginx-stable" has been added to your repositories
controlplane:~$ helm repo update
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "nginx-stable" chart repository
Update Complete. ⎈Happy Helming!⎈
controlplane:~$

# Install NGINX Ingress Controller
helm install nginx-ingress nginx-stable/nginx-ingress \
  --create-namespace \
  --namespace nginx-ingress \
  --set controller.service.type=NodePort \
  --set controller.service.httpPort.nodePort=30080 \
  --set controller.service.httpsPort.nodePort=30443
NAME: nginx-ingress
LAST DEPLOYED: Sat Sep  6 15:54:24 2025
NAMESPACE: nginx-ingress
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
NGINX Ingress Controller 5.1.1 has been installed.

# Verify installation

kubectl get pods -n nginx-ingress
NAME                                        READY   STATUS    RESTARTS   AGE
nginx-ingress-controller-654b4578d7-tlhjz   1/1     Running   0          85s
kubectl get svc -n nginx-ingress
NAME                       TYPE       CLUSTER-IP       EXTERNAL-IP   PORT(S)                      AGE
nginx-ingress-controller   NodePort   10.102.185.119   <none>        80:30080/TCP,443:30443/TCP   2m15s
controlplane:~$

In addition to the above resources, the helm chart also installs required ClusterRole, ClusterRolebinding and most importantly an ingress class name called “nginx”. This ingress class name is important while setting up ingress resource rules as mentioned below.

Creating an Microservice Deployment

This is the same deployment built and deployed in previous blog: Containerized microservice . Refer this on how its built.

# dep.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: go-helloworld
  labels:
    app: go-helloworld
spec:
  replicas: 2
  selector:
    matchLabels:
      app: go-helloworld
  template:
    metadata:
      labels:
        app: go-helloworld
    spec:
      containers:
      - name: go-helloworld
        image: alagesann/go-helloworld:1.0.0
        ports:
        - containerPort: 80

Verify

➜ ~ kubectl apply -f dep.yaml

deployment.apps/go-helloworld created

➜ ~ kubectl get deploy

NAME READY UP-TO-DATE AVAILABLE AGE

go-helloworld 2/2 2 2 26s

Create ClusterIP Service, svc.yaml

Lets create a service of type clusterip to expose the above deployment. Also ingress controller will redirect external service call to internal clusterip service and then to deployments.

apiVersion: v1
kind: Service
metadata:
  name: go-helloworld-service
  labels:
    app: go-helloworld
spec:
  selector:
    app: go-helloworld
  ports:
  - name: http
    port: 80
    targetPort: 8080
    protocol: TCP
  type: ClusterIP

kubectl apply -f svc.yaml

➜ ~ k get deploy,svc

NAME READY UP-TO-DATE AVAILABLE AGE

deployment.apps/go-helloworld 2/2 2 2 5m35s

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

service/go-helloworld-service ClusterIP 10.43.85.59 <none> 80/TCP 4d

Test Service is reachable inside the cluster

➜ ~ kubectl run -it --image=curlimages/curl curly -- /bin/sh

If you don't see a command prompt, try pressing enter.

~ $ curl http://go-helloworld-service/

Hello, World!

Welcome to our Go microservice!

Exposing the Service via Ingress

Create below ingress resource to expose clusterip service to external access. IngressClassName is important to autoconfigure this ingress resource with the nginx ingress controller installed in the earlier step. This ingress resource now will expose the service via a common domain called “example.com”.

# go-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: go-ingress
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /
spec:
  ingressClassName: nginx
  rules:
  - host: "example.com"
    http:
      paths:
      - pathType: Prefix
        path: "/go"
        backend:
          service:
            name: go-helloworld-service
            port:
              number: 80

kubectl apply -f go-ingress.yaml

ingress.networking.k8s.io/go-ingress created

➜ kubectl get ingress

NAME CLASS HOSTS ADDRESS PORTS AGE

go-ingress nginx example.com 192.168.5.15 80 13h

Now for the DNS resolution properly work on the domain name “example.com”, create following entry in the /etc/hosts file with the nginx-ingress service’s internal_ip

# /etc/hosts

10.102.185.119 example.com

now hit the service :

curl http://example.com/go
